Quick Start

1. Prerequisites​

  • A clean Kubernetes environment with correct user privilige settings
  • Available Default Storage Class
  • Harbor Registry
  • If Private registry is not available, download and import the image files into k8s worker node.
  • jq package

1.1 Example .yaml Files​

⚠️ Caution: Keep the file directory name and structure unchanged to ensure smooth deployment.

1.2 Images​

⚠️ Caution: make sure image names are consistent with the .yaml file configurations

2. Deployment​

2.1 Change Directory​

Decompress the .zip file and cd into the script directory

cd gravity2-poc/scripts

2.2 Edit config​

Edit the config file under the script directory

namespace="gravity2-poc"
git_repo="${namespace}"
git_branch="main"
#### Don't remove above lines, but values can be changed ###
#
#### Below settings will be overwritten by scripts ###

2.3 Execute set_all.sh​

 ./set_all.sh

📝 Note:

jq package must be installed to run the script, comment out 05-prep_flows.sh and upload flow manually to Gitea server if jq package isn't available.

2.3.1 Configure Gitea​

After executing the set_all.sh shell script, gitea must be configured. Admin account will be recorded in the config file,

2.3.2 Troubleshooting​

In the rare case of deployment failure, execute reset_all.sh to delete and re-deploy all the components (excluding DB and gitea).

2.4 Verify​

2.4.1 Results​

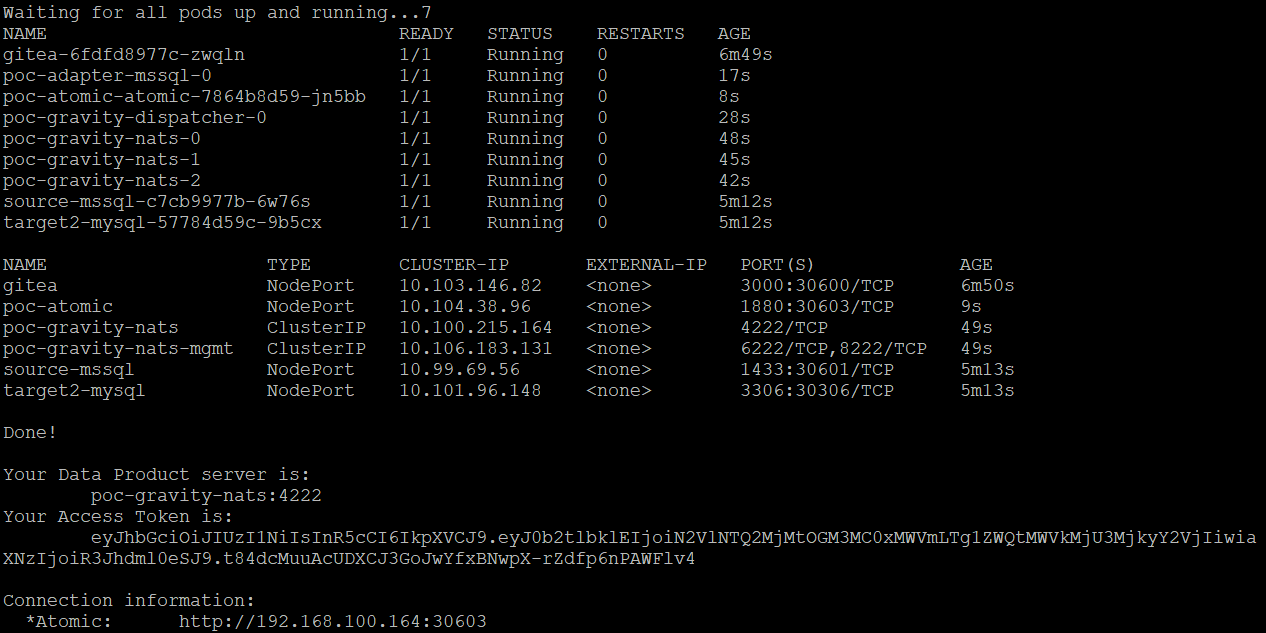

It would take a few minutes to complete all the deployment jobs. You should see something like this upon completion: image

2.4.2 Inject Sample Data​

Follow the tips and instructions shown on the graphical interface and connect to Atomic services. Verify whether the Subscriber module is labeled with connected status.


On the right side, switch to the "Debug Window" labeled with a little bug icon


Return to the db-test directory then execute insert.sh shell script.

cd ../20-poc-db/db-test/
./insert.sh

this will insert sample data into atomic services.

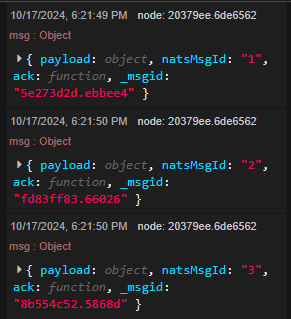

In atomic, check if there are 3 records of messages received.


-- END --
