Rancher Terraform

Rancher Terraform Provider 允許管理員使用 Terraform 建立和管理 RKE2 客體叢集。

部署

先決條件

• Kubernetes 叢集建構在 Harvester VM 之上。
• 作為客體 Kubernetes 節點執行的 Harvester VM 位於相同的命名空間中。

使用 Rancher Terraform Provider 部署客體叢集

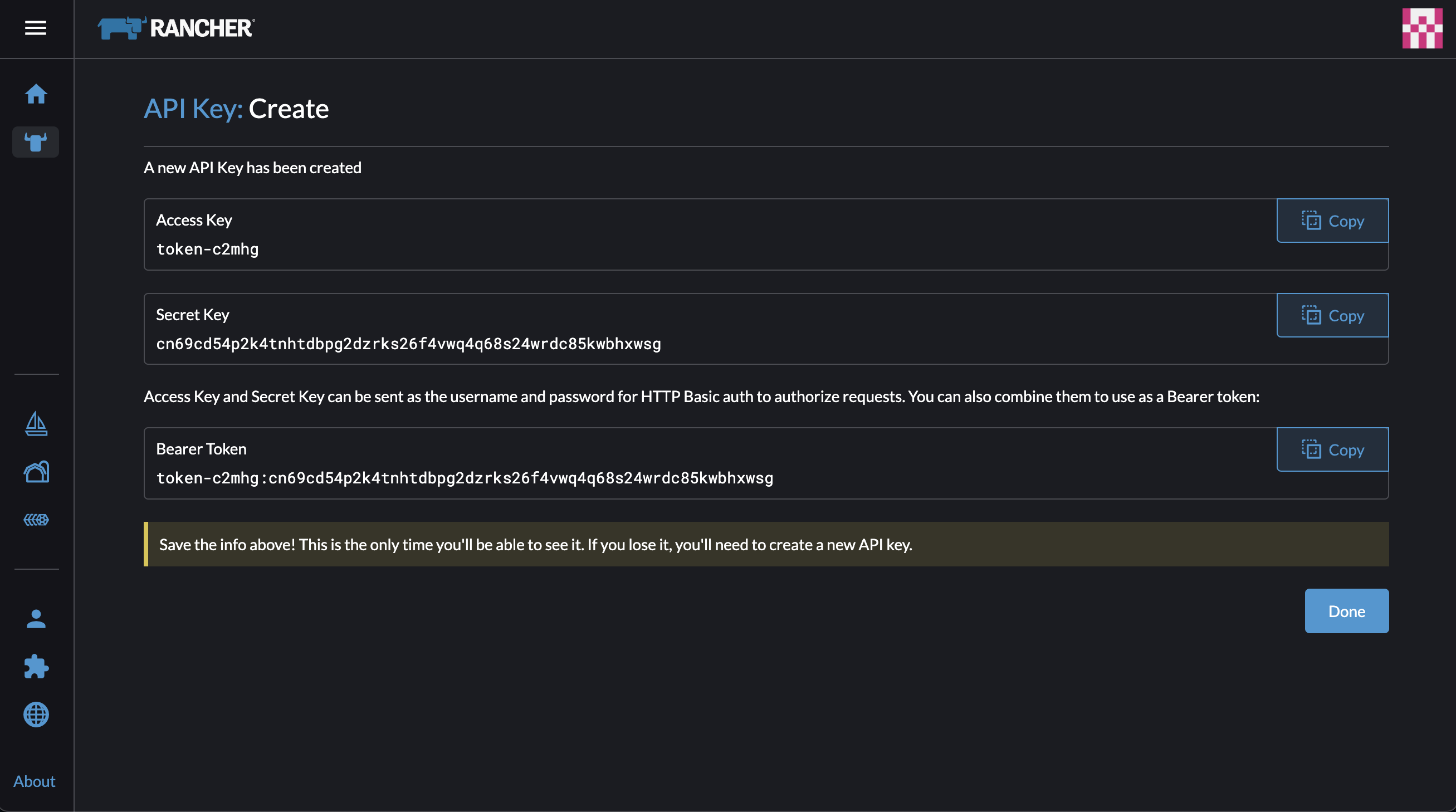

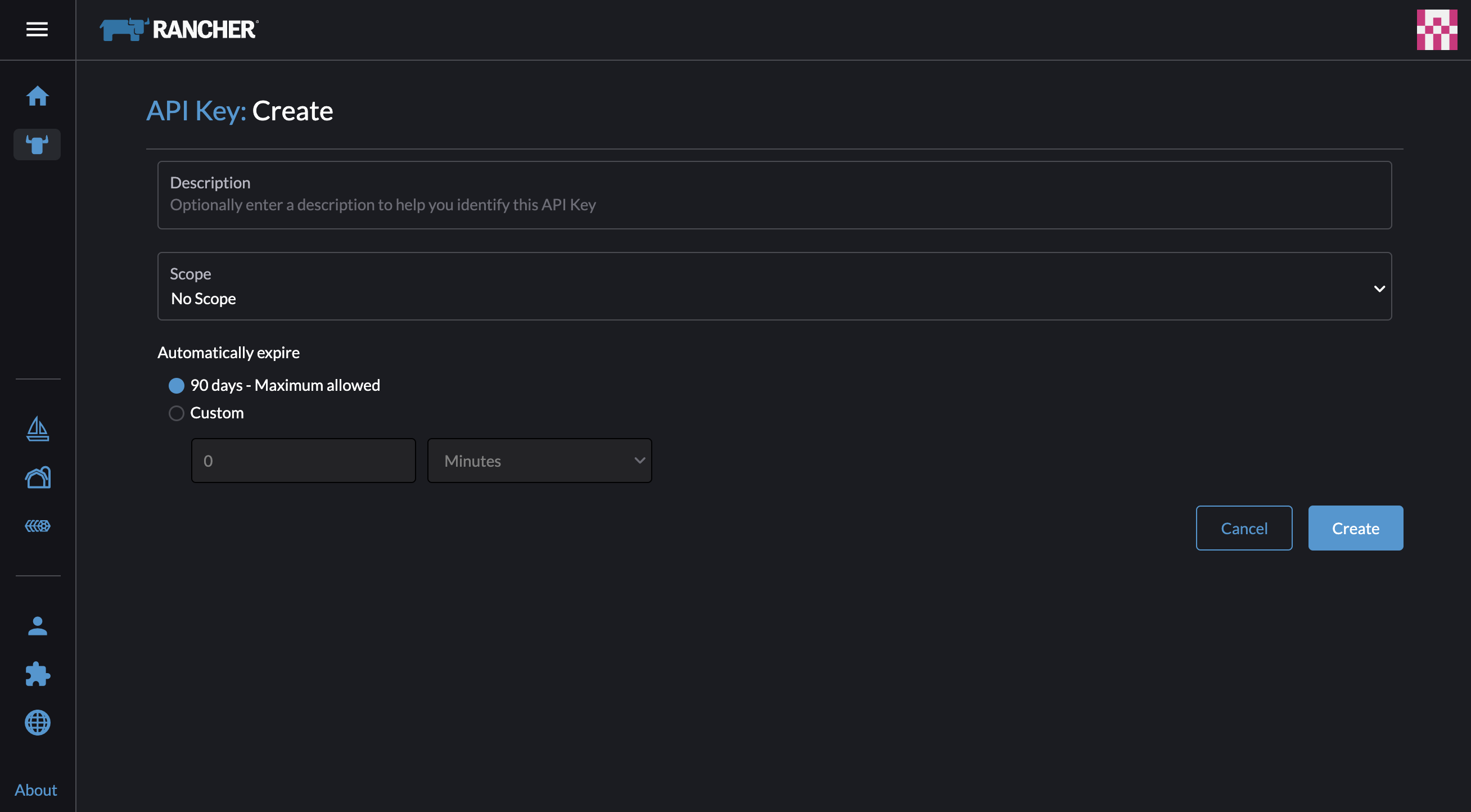

1. 建立 API 金鑰。

   在 Rancher UI 上，前往 Account & API Keys > Create API key > Create。

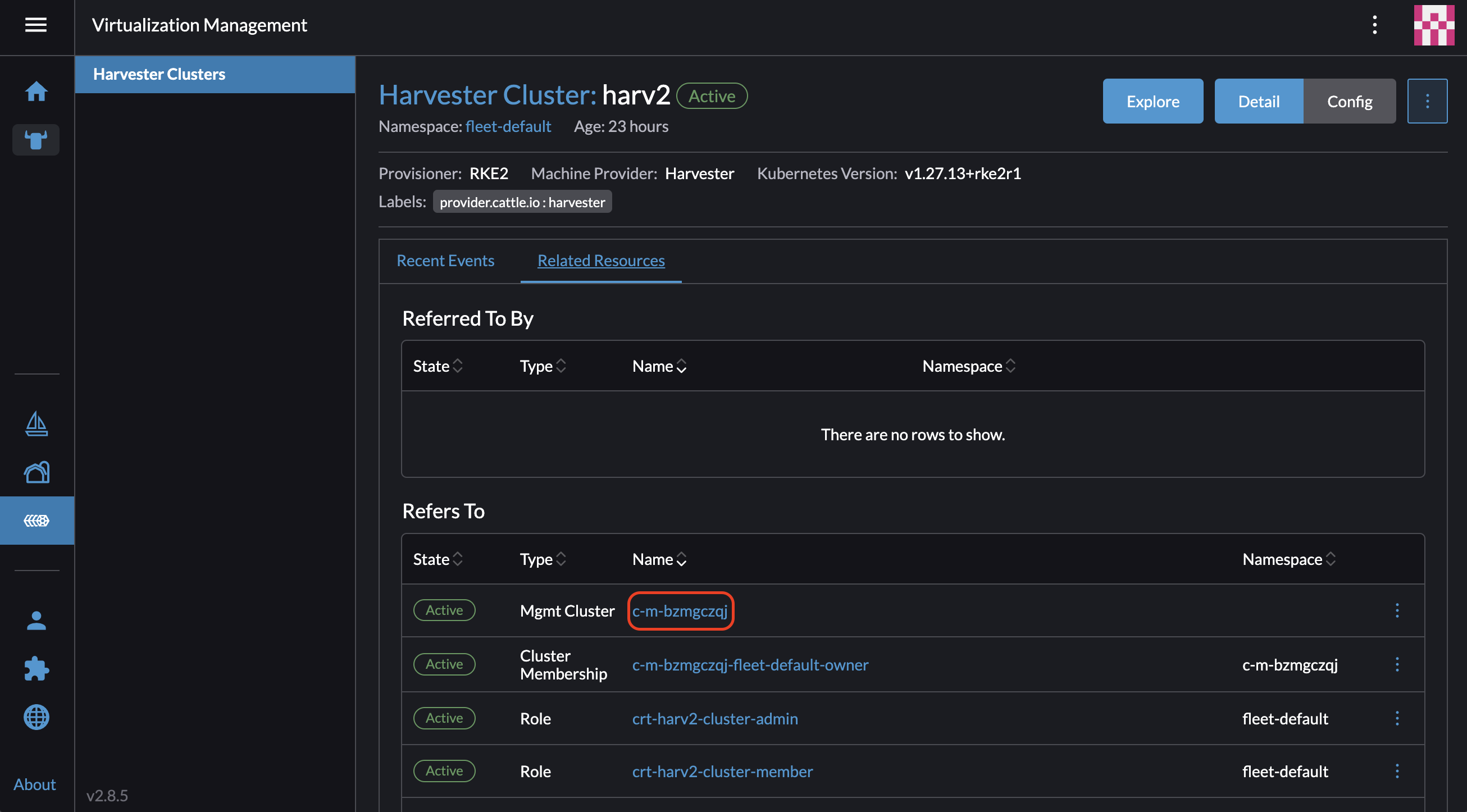

2. 取得 Harvester 叢集 ID。

   在 Rancher UI 上，前往 Virtualization Management > Manage > Related Resources > Mgmt Cluster Name。



3. 取得 Harvester Cloud Provider 和 Harvester CSI Driver 的 kubeconfig。

UI

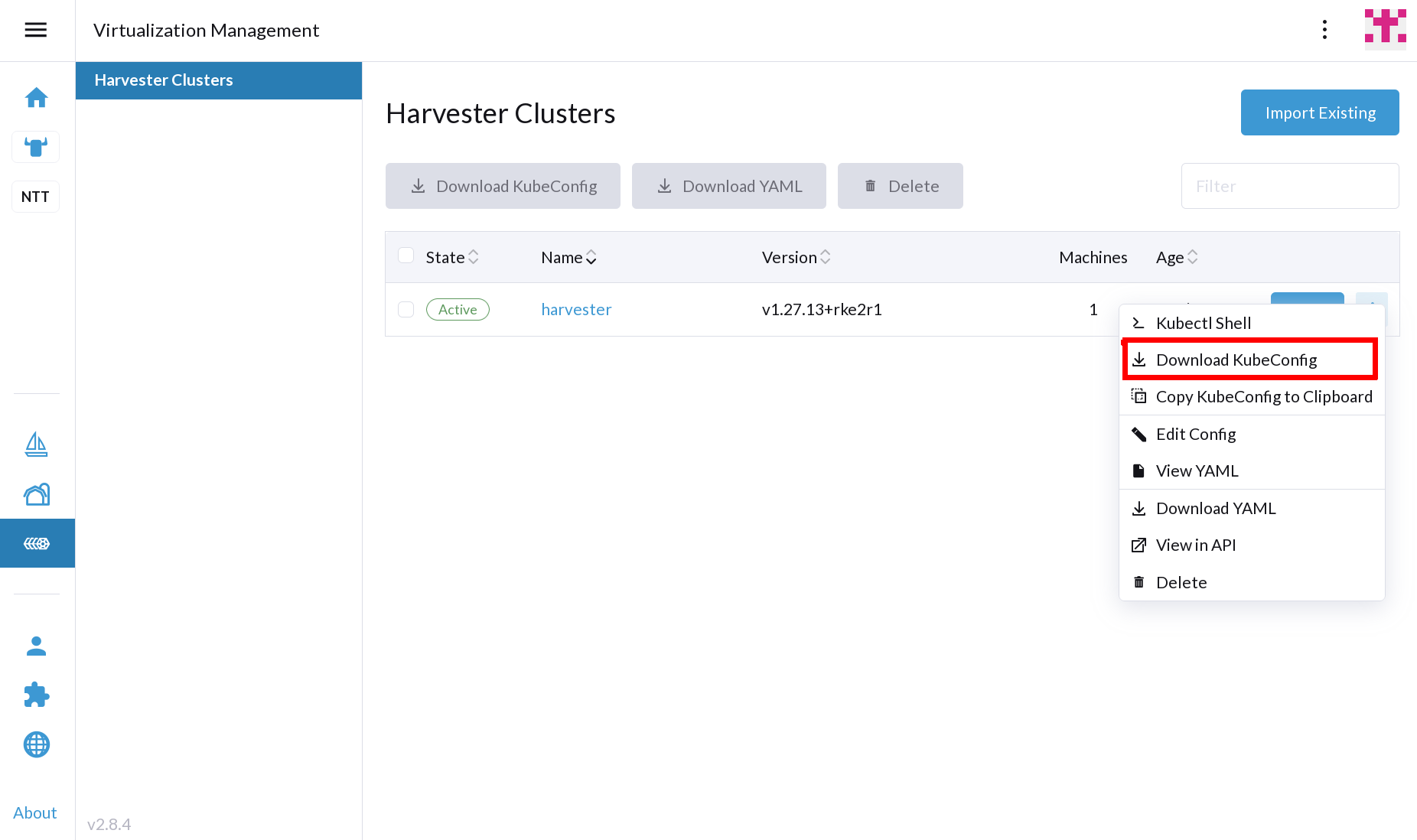

在 Rancher UI 上，前往 Virtualization Management。在清單中找到目標 Harvester 叢集，然後選擇 ⋮ > Download KubeConfig。

Shell

# 產生 harvester cloud provider kubeconfig
RANCHER_SERVER_URL="<RANCHER_SERVER_URL>" # 純伺服器 URL，例如 https://192.168.0.181:6443
RANCHER_ACCESS_KEY="<RANCHER_ACCESS_KEY>"
RANCHER_SECRET_KEY="<RANCHER_SECRET_KEY>"
HARVESTER_CLUSTER_ID="<HARVESTER_CLUSTER_ID>"
CLUSTER_NAME="rke2-demo"
curl -k -X POST ${RANCHER_SERVER_URL}/k8s/clusters/${HARVESTER_CLUSTER_ID}/v1/harvester/kubeconfig \
-H 'Content-Type: application/json' \
-u ${RANCHER_ACCESS_KEY}:${RANCHER_SECRET_KEY} \
-d '{"clusterRoleName": "harvesterhci.io:cloudprovider", "namespace": "default", "serviceAccountName": "'${CLUSTER_NAME}'"}' | xargs | sed 's/\\n/\n/g' > ${CLUSTER_NAME}-kubeconfig

1. 準備一個包含以下內容的 provider.tf 檔案：

   terraform {
     required_providers {
       rancher2 = {
         source  = "rancher/rancher2"
         version = "4.2.0"
       }
     }
   }

   # 設定 Rancher2 provider 為管理員
   provider "rancher2" {
     api_url    = "<api_url>" # Account & API Keys 頁面上的 API Endpoint
     access_key = "<access_key>"
     secret_key = "<secret_key>"
     insecure   = true # 如果 Rancher 伺服器使用自簽憑證，請設定為 true
   }

2. 準備一個包含以下內容的 main.tf 檔案：

   # 取得已匯入的 harvester 叢集資訊
   data "rancher2_cluster_v2" "harv" {
     name = "<harvester_cluster_name_in_rancher>"
   }

   # 為已匯入的 Harvester 叢集建立新的 Cloud Credential
   resource "rancher2_cloud_credential" "harv-cred" {
     name = "harv-cred"
     harvester_credential_config {
       cluster_id = data.rancher2_cluster_v2.harv.cluster_v1_id
       cluster_type = "imported"
       kubeconfig_content = data.rancher2_cluster_v2.harv.kube_config
     }
   }

   # 使用 harvester node_driver 建立新的 rancher2 machine config v2
   resource "rancher2_machine_config_v2" "rke2-machine" {
     generate_name = "rke2-machine"
     harvester_config {
       vm_namespace = "default"
       cpu_count = "2"
       memory_size = "4"
       disk_info = <<EOF
       {
         "disks": [{
           "imageName": "default/<vmimage-name>",
           "size": 15,
           "bootOrder": 1
         }]
       }
       EOF
       network_info = <<EOF
       {
         "interfaces": [{
           "networkName": "default/<network-name>"
         }]
       }
       EOF
       ssh_user = "<ssh_user>"
       user_data = <<EOF
       package_update: true
       packages:
         - qemu-guest-agent
         - iptables
       runcmd:
         - - systemctl
           - enable
           - '--now'
           - qemu-guest-agent.service
       EOF
     }
   }

   resource "rancher2_cluster_v2" "rke2-demo" {
     name = "rke2-demo"
     kubernetes_version = "v1.28.10+rke2r1"
     rke_config {
       machine_pools {
         name = "pool1"
         cloud_credential_secret_name = rancher2_cloud_credential.harv-cred.id
         control_plane_role = true
         etcd_role = true
         worker_role = true
         quantity = 1
         machine_config {
           kind = rancher2_machine_config_v2.rke2-machine.kind
           name = rancher2_machine_config_v2.rke2-machine.name
         }
       }
       machine_selector_config {
         config = yamlencode({
           cloud-provider-config = file("${path.module}/rke2-demo-kubeconfig")
           cloud-provider-name = "harvester"
         })
       }
       machine_global_config = <<EOF
       cni: "calico"
       disable-kube-proxy: false
       etcd-expose-metrics: false
       EOF
       upgrade_strategy {
         control_plane_concurrency = "1"
         worker_concurrency = "1"
       }
       etcd {
         snapshot_schedule_cron = "0 */5 * * *"
         snapshot_retention = 5
       }
       chart_values = <<EOF
       harvester-cloud-provider:
         clusterName: rke2-demo
         cloudConfigPath: /var/lib/rancher/rke2/etc/config-files/cloud-provider-config
       EOF
     }
   }

3. 執行 terraform init。

4. 執行 terraform apply。
