從 v1.1.2 升級到 v1.2.0(不建議)

警告

由於 v1.2.0 中發現的已知問題:

• 升級卡在 Post-draining 狀態

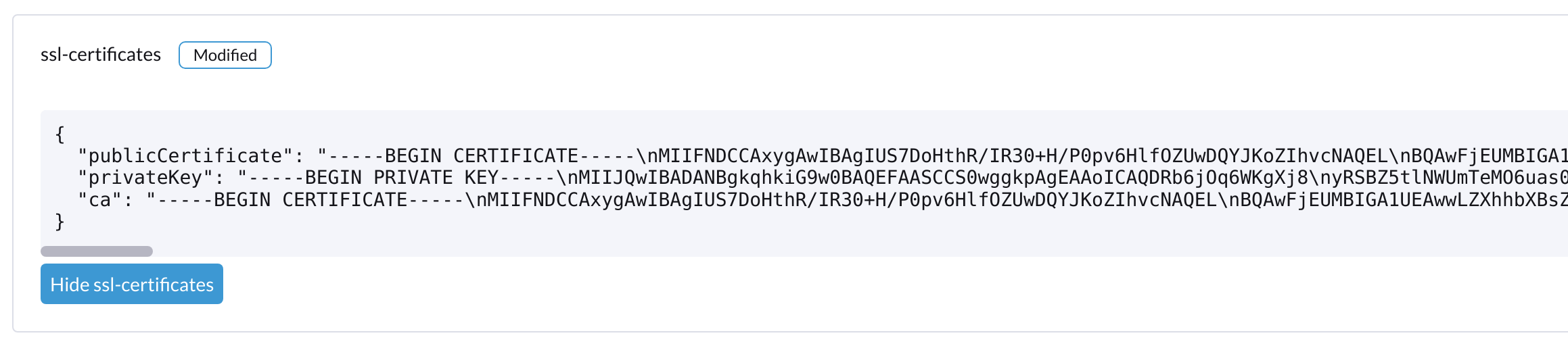

• 升級卡在 Upgrading System Service 狀態,原因是客戶提供的 SSL 憑證沒有 IP SAN,導致 fleet-agent 出現錯誤

我們不建議升級到 v1.2.0。請將您的 v1.1.x 叢集升級到 v1.2.1。

一般資訊

提示

在開始升級之前,您可以執行預檢查腳本以確保叢集處於穩定狀態。如需更多詳細資訊,請造訪此 URL 以取得腳本。

一旦有可升級的版本,Harvester GUI Dashboard 頁面將顯示一個升級按鈕。如需更多詳細資訊,請參閱開始升級。

對於離線環境升級,請參閱準備離線升級。

已知問題

---

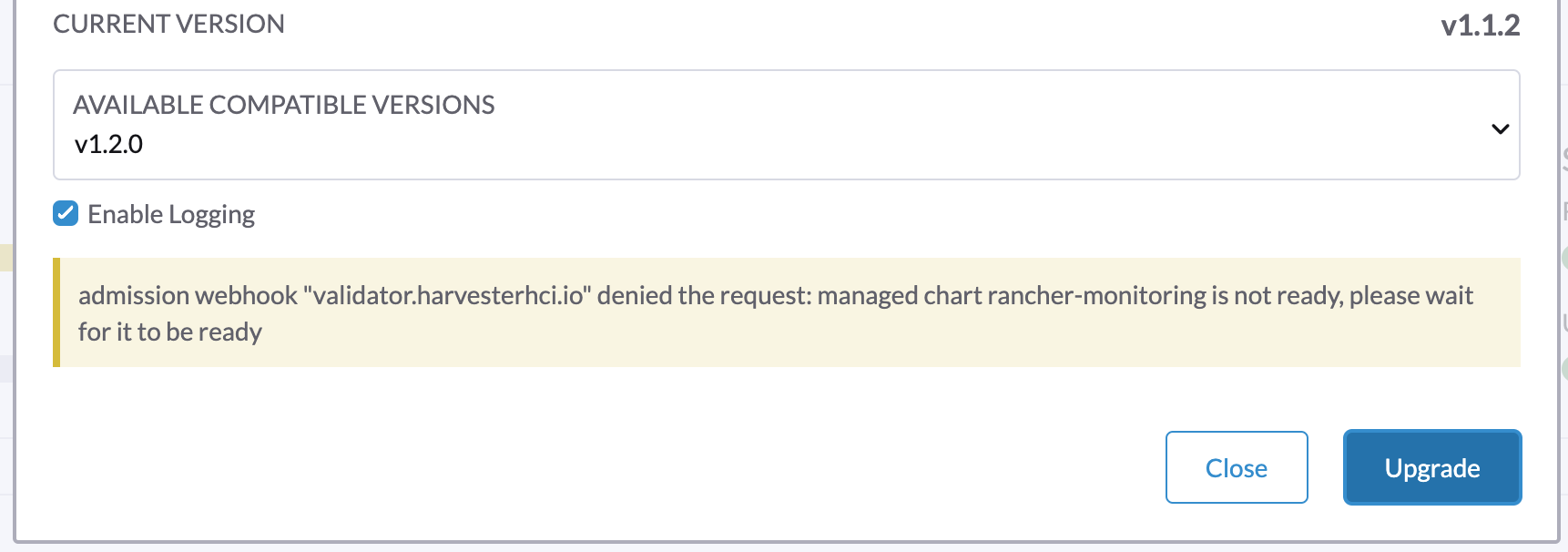

1. 升級無法開始並報告 "validator.harvesterhci.io" denied the request: managed chart rancher-monitoring is not ready, please wait for it to be ready

如果叢集配置了儲存網路,升級無法開始並顯示以下訊息。

• 相關 issue:
  • [Doc] upgrade stuck while upgrading system service with alertmanager and prometheus
• 解決方法:
  • https://github.com/harvester/harvester/issues/3839#issuecomment-1534438192

---

2. 升級卡在 Creating Upgrade Repository

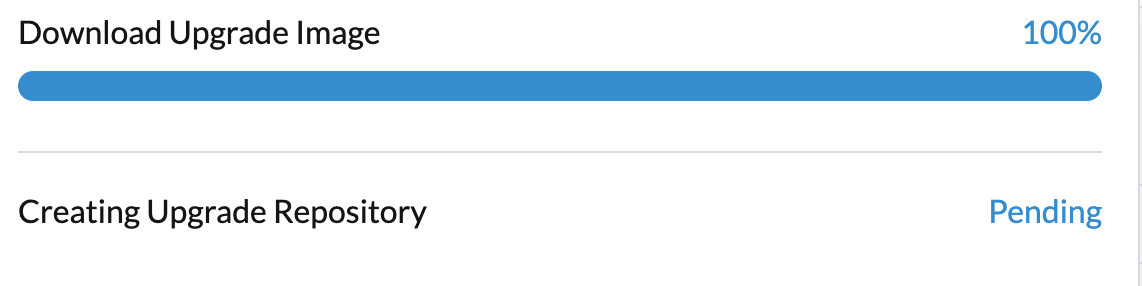

在升級期間,Creating Upgrade Repository 卡在 Pending 狀態:

請執行以下步驟檢查叢集是否遇到此問題:

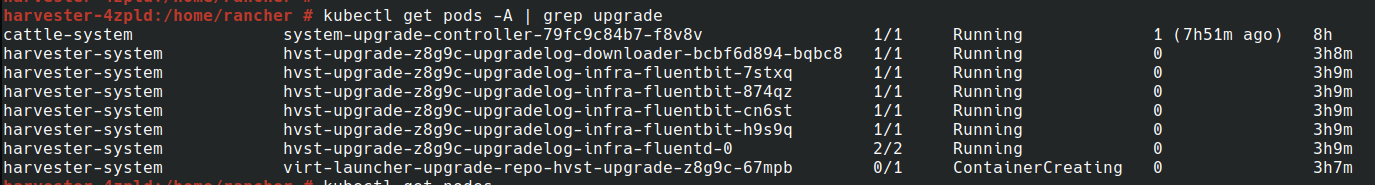

1. 檢查升級儲存庫 Pod:



   如果 virt-launcher-upgrade-repo-hvst-<upgrade-name> Pod 停留在 ContainerCreating,您的叢集可能遇到此問題。在這種情況下,請繼續執行步驟 2。

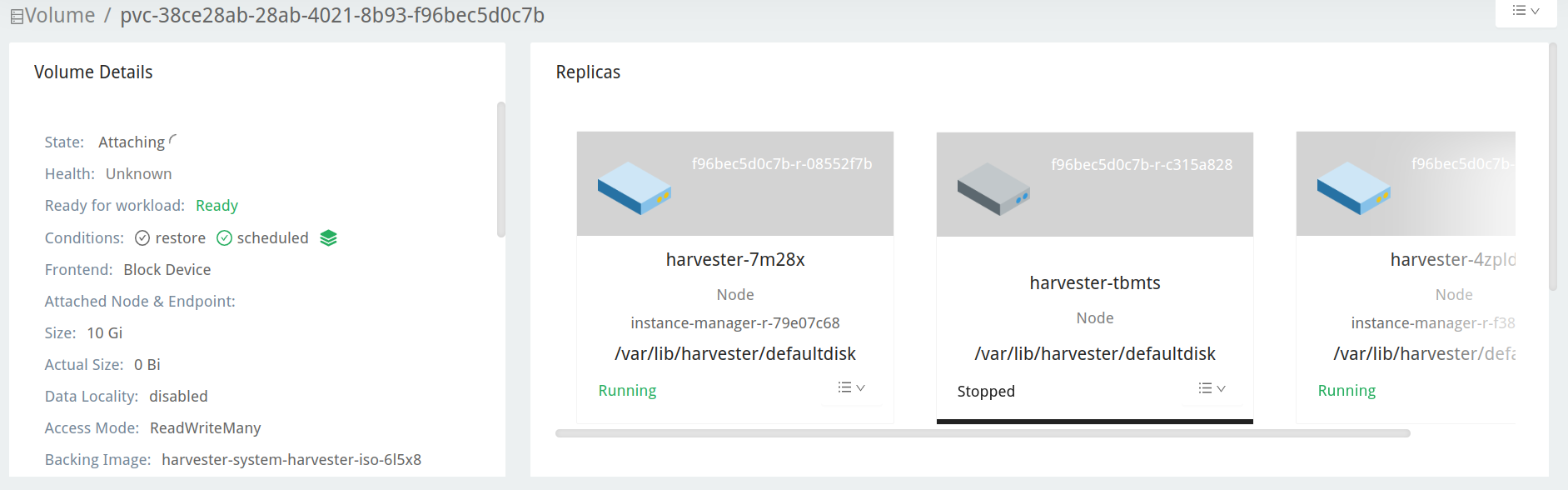

2. 在 Longhorn GUI 中檢查升級儲存庫卷。

   1. 前往 Longhorn GUI。
   2. 導航到 Volume 頁面。
   3. 檢查升級儲存庫 VM 卷。它應該連接到名為 virt-launcher-upgrade-repo-hvst-<upgrade-name> 的 Pod。如果卷的其中一個副本停留在 Stopped(灰色),則叢集正在遇到此問題。



• 相關 issue:
  • [BUG] upgrade stuck on create upgrade VM
• 解決方法:
  • 從 Longhorn GUI 刪除 Stopped 副本。或者,
  • 重新啟動升級。

---

3. 升級在預清空節點時卡住

從 v1.1.0 開始,Harvester 會在升級節點之前等待所有卷變得健康(當節點數量 >= 3 時)。一般來說,如果升級卡在「pre-draining」狀態,您可以檢查卷的健康狀況。

造訪「存取嵌入式 Longhorn」以了解如何存取嵌入式 Longhorn GUI。

您也可以檢查 pre-drain 任務日誌。請參閱故障排除指南中的 Phase 4: Upgrade nodes。

---

4. 升級卡在升級第一個節點:Job was active longer than the specified deadline

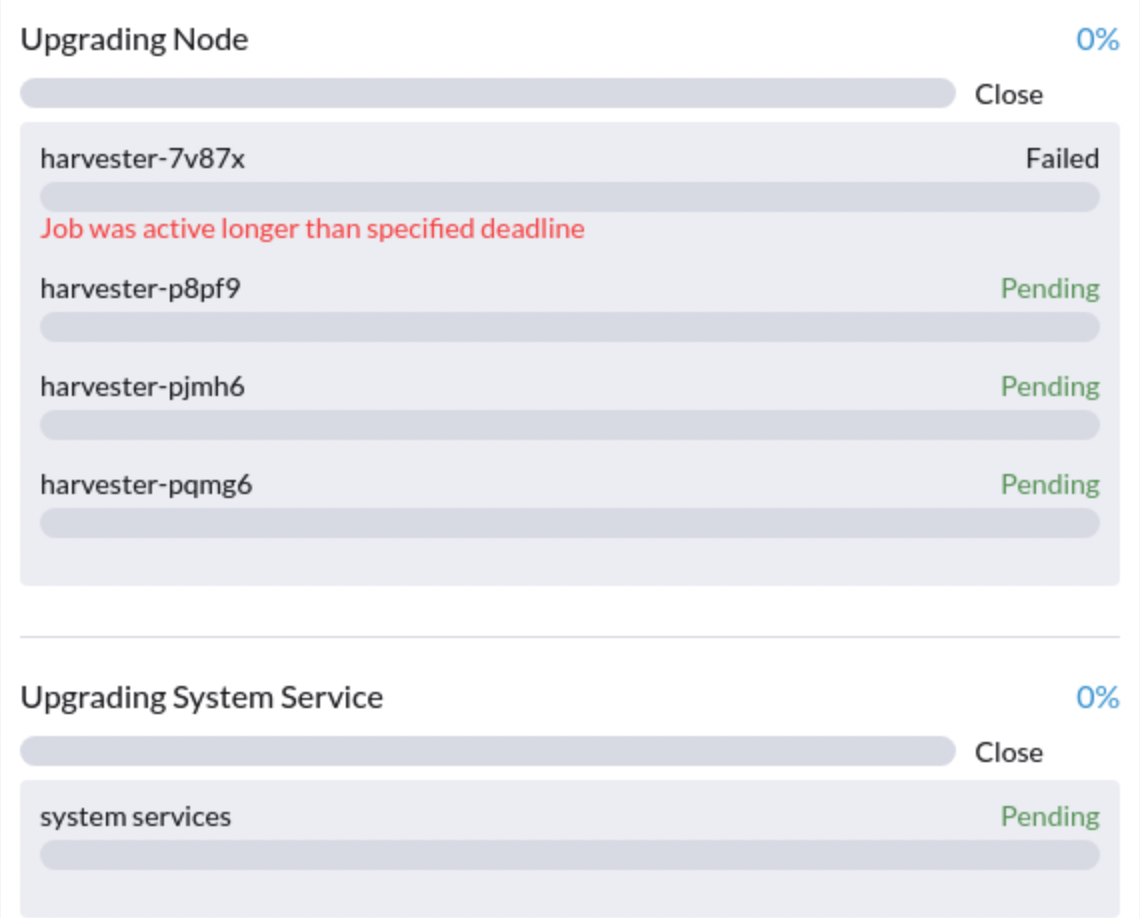

升級失敗,如下方螢幕截圖所示:

• 相關 issue:
  • [BUG] Upgrade stuck in upgrading first node: Job was active longer than specified deadline
• 解決方法:
  • https://github.com/harvester/harvester/issues/2894#issuecomment-1274069690

---

5. 升級卡在 Pre-drained 狀態

您可能會看到升級卡在「pre-drained」狀態:

在此階段,Kubernetes 應該清空節點上的工作負載,但某些原因可能會導致過程停滯。

5.1 節點包含服務單副本卷的 Longhorn instance-manager-r Pod

如果節點包含卷的最後一個倖存副本,Longhorn 不允許清空節點。要檢查節點是否遇到這種情況,請按照以下步驟操作:

1. 使用命令列出單副本卷:

   kubectl get volumes.longhorn.io -A -o yaml | yq '.items[] | select(.spec.numberOfReplicas == 1) | .metadata.namespace + "/" + .metadata.name'

   例如:

   $ kubectl get volumes.longhorn.io -A -o yaml | yq '.items[] | select(.spec.numberOfReplicas == 1) | .metadata.namespace + "/" + .metadata.name'
   longhorn-system/pvc-d1f19bab-200e-483b-b348-c87cfbba85ab

2. 檢查副本是否駐留在卡住的節點上:

   使用命令列出卷副本的 NodeID:

   kubectl get replicas.longhorn.io -n longhorn-system -o yaml | yq '.items[] | select(.metadata.labels.longhornvolume == "<volume>") | .spec.nodeID'

   例如:

   $ kubectl get replicas.longhorn.io -n longhorn-system -o yaml | yq '.items[] | select(.metadata.labels.longhornvolume == "pvc-d1f19bab-200e-483b-b348-c87cfbba85ab") | .spec.nodeID'
   node1

   如果結果顯示副本駐留在升級卡住的節點上(在此範例中為 node1),則您的叢集遇到此問題。

有幾種方法可以解決這種情況。為您的虛擬機選擇最合適的方法:

1. 關閉使用單副本卷的虛擬機以分離卷,讓升級繼續。
2. 將卷的副本調整為多於一個。
   1. 前往 Longhorn GUI。
   2. 前往 Volume 頁面。

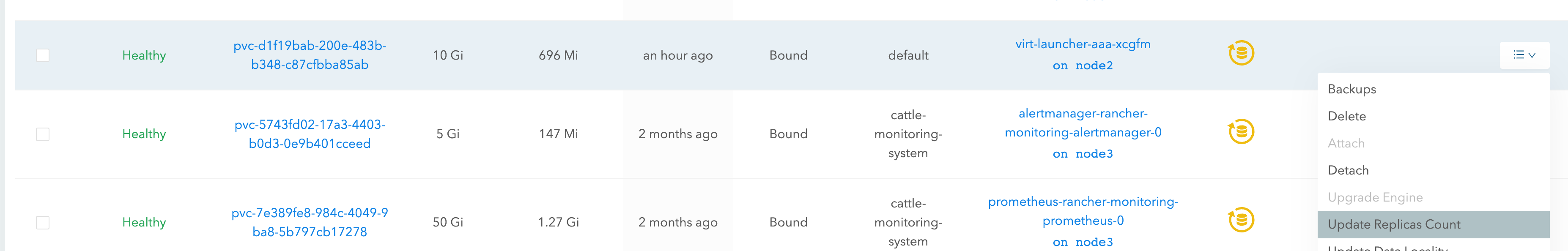

   3. 找到有問題的卷並點擊右側的圖示,然後選擇 Update Replicas Count:
   4. 增加 Number of Replicas 並選擇 OK。

5.2 配置錯誤的 Longhorn instance-manager-r Pod Disruption Budget(PDB)

配置錯誤的 PDB 可能會導致此問題。要檢查是否是這種情況,請執行以下步驟:

1. 假設卡住的節點是 harvester-node-1。

2. 檢查卡住節點上的 instance-manager-e 或 instance-manager-r Pod 名稱:

   $ kubectl get pods -n longhorn-system --field-selector spec.nodeName=harvester-node-1 | grep instance-manager
   instance-manager-r-d4ed2788          1/1     Running   0              3d8h

   上述輸出顯示 instance-manager-r-d4ed2788 Pod 在節點上。

3. 檢查 Rancher 日誌並驗證 instance-manager-e 或 instance-manager-r Pod 無法被清空:

   $ kubectl logs deployment/rancher -n cattle-system
   ...
   2023-03-28T17:10:52.199575910Z 2023/03/28 17:10:52 [INFO] [planner] rkecluster fleet-local/local: waiting: draining etcd node(s) custom-4f8cb698b24a,custom-a0f714579def
   2023-03-28T17:10:55.034453029Z evicting pod longhorn-system/instance-manager-r-d4ed2788
   2023-03-28T17:10:55.080933607Z error when evicting pods/"instance-manager-r-d4ed2788" -n "longhorn-system" (will retry after 5s): Cannot evict pod as it would violate the pod's disruption budget.

4. 執行命令檢查是否有與卡住節點相關聯的 PDB:

   $ kubectl get pdb -n longhorn-system -o yaml | yq '.items[] | select(.spec.selector.matchLabels."longhorn.io/node"=="harvester-node-1") | .metadata.name'
   instance-manager-r-466e3c7f

5. 檢查此 PDB 的 instance manager 的擁有者:

   $ kubectl get instancemanager instance-manager-r-466e3c7f -n longhorn-system -o yaml | yq -e '.spec.nodeID'
   harvester-node-2

   如果輸出與卡住的節點不符(在此範例輸出中,harvester-node-2 與卡住的節點 harvester-node-1 不符),則我們可以得出結論此問題發生。

6. 在應用解決方法之前,檢查所有卷是否健康:

   kubectl get volumes -n longhorn-system -o yaml | yq '.items[] | select(.status.state == "attached")| .status.robustness'

   輸出應該都是 healthy。如果不是這種情況,您可能需要取消封鎖節點以使卷再次健康。

7. 刪除配置錯誤的 PDB:

   kubectl delete pdb instance-manager-r-466e3c7f -n longhorn-system

• 相關 issue:
  • [BUG] 3 Node AirGapped Cluster Upgrade Stuck v1.1.0->v1.1.2-rc4

5.3 無法清空 instance-manager-e Pod

在升級期間,您可能會遇到無法清空 instance-manager-e Pod 的問題。當這種情況發生時,您將在 Rancher 日誌中看到類似以下所示的錯誤訊息:

$ kubectl logs deployment/rancher -n cattle-system | grep "evicting pod"
evicting pod longhorn-system/instance-manager-r-a06a43f3437ab4f643eea7053b915a80
evicting pod longhorn-system/instance-manager-e-452e87d2
error when evicting pods/"instance-manager-r-a06a43f3437ab4f643eea7053b915a80" -n "Longhorn-system" (will retry after 5s): Cannot evict pod as it would violate the pod's disruption budget.
error when evicting pods/"instance-manager-e-452e87d2" -n "longhorn-system" (will retry after 5s): Cannot evict pod as it would violate the pod's disruption budget.

檢查 instance-manager-e 以查看是否有任何引擎實例保留。

$ kubectl get instancemanager instance-manager-e-452e87d2 -n longhorn-system -o yaml | yq -e ".status.instances"
pvc-7b120d60-1577-4716-be5a-62348271025a-e-1cd53c57:
  spec:
    name: pvc-7b120d60-1577-4716-be5a-62348271025a-e-1cd53c57
  status:
    endpoint: ""
    errorMsg: ""
    listen: ""
    portEnd: 10001
    portStart: 10001
    resourceVersion: 0
    state: running
    type: ""

在此範例中,instance-manager-e-452e87d2 仍然有一個引擎實例,因此您無法清空 Pod。

您需要檢查引擎數量以查看是否有任何引擎數量是多餘的。每個 PVC 應該只有一個引擎。

# kubectl get engines -n longhorn-system -l longhornvolume=pvc-7b120d60-1577-4716-be5a-62348271025a
NAME                                                  STATE     NODE               INSTANCEMANAGER                                      IMAGE                               AGE
pvc-76120d60-1577-4716-be5a-62348271025a-e-08220662   running   harvester-qv4hd    instance-manager-e-625d715e2f2e7065d64339f9b31407c2  longhornio/longhorn-engine:v1.4.3   2d12h
pvc-7b120d60-1577-4716-be5a-62348271025a-e-lcd53c57   running   harvester-lhlkv    instance-manager-e-452e87d2                          longhornio/longhorn-engine:v1.4.3   4d10h

上述範例顯示同一個 PVC 存在兩個引擎,這是 Longhorn #6642 中的已知問題。要解決此問題,請刪除多餘的引擎以允許升級繼續。

要確定哪個引擎是正確的,請使用以下命令:

$ kubectl get volumes pvc-7b120d60-1577-4716-be5a-62348271025a -n longhorn-system
NAME                                      STATE     ROBUSTNESS  SCHEDULED SIZE        NODE            AGE
pvc-7b120d60-1577-4716-be5a-62348271025a  attached  healthy               42949672960 harvester-q4vhd 4d10h

在此範例中,卷 pvc-7b120d60-1577-4716-be5a-62348271025a 在節點 harvester-q4vhd 上處於活動狀態,表示未在此節點上執行的引擎是多餘的。

要使引擎變為非活動狀態並觸發 Longhorn 自動刪除它,請執行以下命令:

$ kubectl patch engine pvc-7b120d60-1577-4716-be5a-62348271025a-e-lcd53c57 -n longhorn-system --type='json' -p='[{"op": "replace", "path": "/spec/active", "value": false}]'
engine.longhorn.io/pvc-7b120d60-1577-4716-be5a-62348271025a-e-lcd53c57 patched

幾秒鐘後,您可以驗證引擎的狀態:

$ kubectl get engine -n longhorn-system|grep pvc-7b120d60-1577-4716-be5a-62348271025a
pvc-7b120d60-1577-4716-be5a-62348271025a-e-08220b62   running  harvester-q4vhd   instance-manager-e-625d715e2f2e7065d64339f9631407c2  longhornio/longhorn-engine:v1.4.3   2d13h

instance-manager-e Pod 現在應該成功清空,允許升級繼續。

• 相關 issue:
  • [BUG] Upgrade (v1.1.2 -> v1.2.0-rc6) stuck in pre-drained

---

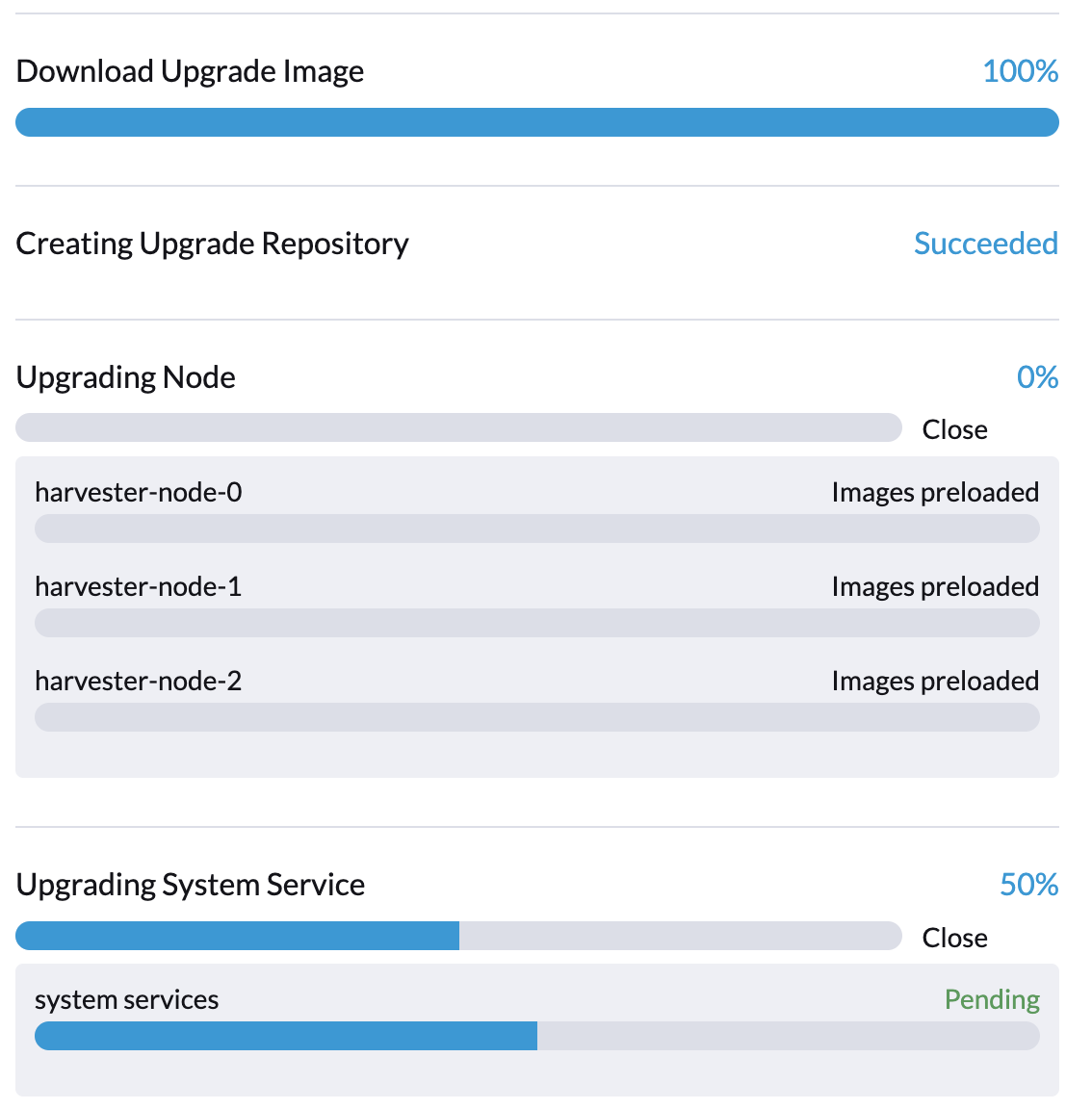

6. 升級卡在 Upgrading System Service 狀態

如果您注意到升級長時間卡在 Upgrading System Service 狀態,您可能需要調查升級是否卡在 apply-manifests 階段。

POD prometheus-rancher-monitoring-prometheus-0 待刪除

1. 檢查 apply-manifests Pod 的日誌以查看以下訊息是否重複。

   $ kubectl -n harvester-system logs hvst-upgrade-md6wr-apply-manifests-wqslg --tail=10
   Tue Sep  5 10:20:39 UTC 2023
   there are still 1 pods in cattle-monitoring-system to be deleted
   Tue Sep  5 10:20:45 UTC 2023
   there are still 1 pods in cattle-monitoring-system to be deleted
   Tue Sep  5 10:20:50 UTC 2023
   there are still 1 pods in cattle-monitoring-system to be deleted
   Tue Sep  5 10:20:55 UTC 2023
   there are still 1 pods in cattle-monitoring-system to be deleted
   Tue Sep  5 10:21:00 UTC 2023
   there are still 1 pods in cattle-monitoring-system to be deleted

2. 檢查 prometheus-rancher-monitoring-prometheus-0 Pod 是否卡在 Terminating 狀態。

   $ kubectl -n cattle-monitoring-system get pods
   NAME                                         READY   STATUS        RESTARTS   AGE
   prometheus-rancher-monitoring-prometheus-0   0/3     Terminating   0          19d

3. 使用以下命令找出終止中 Pod 的 UID:

   $ kubectl -n cattle-monitoring-system get pod prometheus-rancher-monitoring-prometheus-0 -o jsonpath='{.metadata.uid}'
   33f43165-6faa-4648-927d-69097901471c

4. 透過控制台或 SSH 存取叢集的任何節點。

5. 使用 Pod 的 UID 在 /var/lib/rancher/rke2/agent/logs/kubelet.log 中搜尋相關日誌訊息。

   E0905 10:26:18.769199   17399 reconciler.go:208] "operationExecutor.UnmountVolume failed (controllerAttachDetachEnabled true) for volume \"pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\" (UniqueName: \"kubernetes.io/csi/driver.longhorn.io^pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\") pod \"33f43165-6faa-4648-927d-69097901471c\" (UID: \"33f43165-6faa-4648-927d-69097901471c\") : UnmountVolume.NewUnmounter failed for volume \"pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\" (UniqueName: \"kubernetes.io/csi/driver.longhorn.io^pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\") pod \"33f43165-6faa-4648-927d-69097901471c\" (UID: \"33f43165-6faa-4648-927d-69097901471c\") : kubernetes.io/csi: unmounter failed to load volume data file [/var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/mount]: kubernetes.io/csi: failed to open volume data file [/var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/vol_data.json]: open /var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/vol_data.json: no such file or directory" err="UnmountVolume.NewUnmounter failed for volume \"pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\" (UniqueName: \"kubernetes.io/csi/driver.longhorn.io^pvc-7781c988-c35b-4cf8-89e6-f2907ef33603\") pod \"33f43165-6faa-4648-927d-69097901471c\" (UID: \"33f43165-6faa-4648-927d-69097901471c\") : kubernetes.io/csi: unmounter failed to load volume data file [/var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/mount]: kubernetes.io/csi: failed to open volume data file [/var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/vol_data.json]: open /var/lib/kubelet/pods/33f43165-6faa-4648-927d-69097901471c/volumes/kubernetes.io~csi/pvc-7781c988-c35b-4cf8-89e6-f2907ef33603/vol_data.json: no such file or directory"

   如果 kubelet 繼續抱怨卷無法卸載,請應用以下解決方法以允許升級繼續。

6. 使用以下命令強制刪除卡在 Terminating 狀態的 Pod:

   kubectl delete pod prometheus-rancher-monitoring-prometheus-0 -n cattle-monitoring-system  --force

• 相關 issue
  • [BUG] The rancher-monitoring Pod stuck at terminating status when upgrading from v1.1.2 to v1.2.0-rc6

cattle-monitoring-system 命名空間中的多個 POD 待刪除

1. 檢查 apply-manifests Pod 的日誌以查看以下訊息是否重複。

   there are still 10 pods in cattle-monitoring-system to be deleted
   Fri Dec  8 19:06:56 UTC 2023
   there are still 10 pods in cattle-monitoring-system to be deleted
   Fri Dec  8 19:07:01 UTC 2023

   當它持續顯示 10(或其他數字)個 Pod 時,它遇到以下問題。

   監控功能是從 rancher-monitoring ManagedChart 部署的,在 Harvester v1.2.0、v1.2.1 中,
   此 ManagedChart 在升級時轉換為 Harvester Addon 功能。
   ManagedChart rancher-monitoring 被刪除,通常,所有產生的資源包括 deployment、
   daemonset 等都會自動刪除。但在這種情況下,這些資源沒有被刪除。
   上述日誌反映了結果。
   以下說明將指導手動刪除它們。

2. 找出 cattle-monitoring-system 命名空間中受影響的資源。

   cattle-monitoring-system 中的根級別資源

   自訂 CRD: Prometheus
     Object: rancher-monitoring-prometheus
     Sub-object: statefulset.apps/prometheus-rancher-monitoring-prometheus

   自訂 CRD: Alertmanager
     object:  rancher-monitoring-alertmanager
     Sub-object:  statefulset.apps/alertmanager-rancher-monitoring-alertmanager

   Deployment:
     rancher-monitoring-grafana
     rancher-monitoring-kube-state-metrics
     rancher-monitoring-operator
     rancher-monitoring-prometheus-adapter

   Daemonset:
     rancher-monitoring-prometheus-node-exporter

3. 刪除受影響的資源。

   使用以下命令刪除它們,同時檢查 `apply-manifests` 的日誌,直到它不再
   報告 `there are still x pods in cattle-monitoring-system to be deleted`。

   kubectl delete prometheus rancher-monitoring-prometheus -n cattle-monitoring-system
   kubectl delete alertmanager rancher-monitoring-alertmanager -n cattle-monitoring-system

   kubectl delete deployment rancher-monitoring-grafana -n cattle-monitoring-system
   kubectl delete deployment rancher-monitoring-kube-state-metrics -n cattle-monitoring-system
   kubectl delete deployment rancher-monitoring-operator -n cattle-monitoring-system
   kubectl delete deployment rancher-monitoring-prometheus-adapter -n cattle-monitoring-system

   kubectl delete daemonset rancher-monitoring-prometheus-node-exporter -n cattle-monitoring-system

   備註

   您可能需要多次執行某些命令才能完全刪除資源。

• 相關 issue
  • [BUG] upgrade hung on apply-manifests

---

7. 升級卡在 Upgrading System Service 狀態

如果升級長時間卡在 Upgrading System Service 狀態,某些系統服務的憑證可能已過期。要調查和解決此問題,請按照以下步驟操作:

1. 使用命令找出 apply-manifest 任務的名稱:

   kubectl get jobs -n harvester-system -l harvesterhci.io/upgradeComponent=manifest

   範例輸出:

   NAME                                 COMPLETIONS   DURATION   AGE
   hvst-upgrade-9gmg2-apply-manifests   0/1           46s        46s

2. 使用命令檢查任務的日誌:

   kubectl logs jobs/hvst-upgrade-9gmg2-apply-manifests -n harvester-system

   如果日誌中出現以下訊息,請繼續下一步:

   Waiting for CAPI cluster fleet-local/local to be provisioned (current phase: Provisioning, current generation: 30259)...
   Waiting for CAPI cluster fleet-local/local to be provisioned (current phase: Provisioning, current generation: 30259)...
   Waiting for CAPI cluster fleet-local/local to be provisioned (current phase: Provisioning, current generation: 30259)...
   Waiting for CAPI cluster fleet-local/local to be provisioned (current phase: Provisioning, current generation: 30259)...

3. 使用命令檢查 CAPI 叢集的狀態:

   kubectl get clusters.provisioning.cattle.io local -n fleet-local -o yaml

   如果您看到類似以下的條件,則叢集很可能遇到此問題:

       - lastUpdateTime: "2023-01-17T16:26:48Z"
         message: 'configuring bootstrap node(s) custom-24cb32ce8387: waiting for probes:
           kube-controller-manager, kube-scheduler'
         reason: Waiting
         status: Unknown
         type: Updated

4. 使用以下命令找出機器的主機名,並按照解決方法查看節點上的服務憑證是否過期:

   kubectl get machines.cluster.x-k8s.io -n fleet-local <machine_name> -o yaml | yq .status.nodeRef.name

   將 <machine_name> 替換為上一步輸出中的機器名稱。

   備註

   如果多個節點大約在同一時間加入叢集,您應該在所有這些節點上執行解決方法。

• 相關 issue:
  • [DOC/ENHANCEMENT] need to add cert-rotate feature, otherwise upgrade may stuck on Waiting for CAPI cluster fleet-local/local to be provisioned
• 解決方法:
  • https://github.com/harvester/harvester/issues/3863#issuecomment-1539681311

---

8. 離線環境中 registry.suse.com/harvester-beta/vmdp:latest 映像檔不可用

從 v1.1.0 開始,Harvester 不會在 ISO 檔案中打包 registry.suse.com/harvester-beta/vmdp:latest 映像檔。對於 v1.1.0 之前的 Windows VM,它們使用此映像檔作為容器磁碟。但是,kubelet 可能會刪除舊映像檔以釋放空間。當此映像檔被刪除時,Windows VM 無法在離線環境中存取。您可以透過將映像檔更改為 registry.suse.com/suse/vmdp/vmdp:2.5.4.2 並重新啟動 Windows VM 來解決此問題。

• 相關 issue:
  • [BUG] VMDP Image wrong after upgrade to Harvester 1.2.0

---

9. 升級卡在 Post-draining 狀態

備註

此已知問題已在 v1.2.1 中修復。

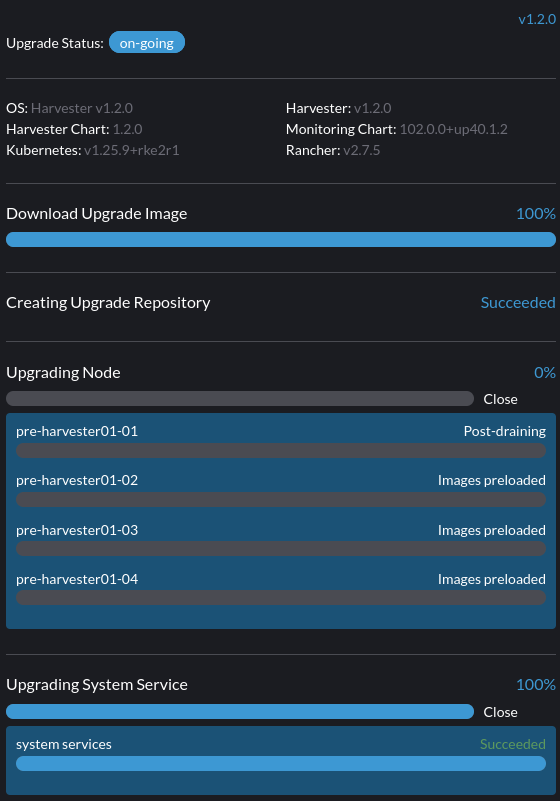

如果您遇到 Post-draining 狀態,節點可能卡在 OS 升級過程中,如下所示。

Harvester 使用 elemental upgrade 幫助我們升級 OS。檢查 elemental upgrade 日誌以查看是否有任何錯誤。

您可以使用以下命令檢查 elemental upgrade 日誌:

# View the post-drain job, which should be named `hvst-upgrade-xxx-post-drain-xxx`
$ kubectl get pod --selector=harvesterhci.io/upgradeJobType=post-drain -n harvester-system

# Check the logs with the following command
$ kubectl logs -n harvester-system pods/hvst-upgrade-xxx-post-drain-xxx

假設您在日誌中看到以下錯誤。不完整的 state.yaml 導致此問題。

Flag --directory has been deprecated, 'directory' is deprecated please use 'system' instead
INFO[2023-09-13T12:02:42Z] Starting elemental version 0.3.1
INFO[2023-09-13T12:02:42Z] reading configuration form '/tmp/tmp.N6rn4F6mKM'
ERRO[2023-09-13T12:02:42Z] Invalid upgrade command setup undefined state partition
elemental upgrade failed with return code: 33
+ ret=33
+ '[' 33 '!=' 0 ']'
+ echo 'elemental upgrade failed with return code: 33'
+ cat /host/usr/local/upgrade_tmp/elemental-upgrade-20230913120242.log

在這種情況下,Harvester 將 elemental-cli 升級到最新版本。它將嘗試從 state.yaml 中找到 state 分割區。如果 state.yaml 不完整,則有可能無法找到 state 分割區。

不完整的 state.yaml 看起來如下。

# Autogenerated file by elemental client, do not edit

date: "2023-09-13T08:31:42Z"
state:
    # we are missing `label` here.
    active:
        source: dir:///tmp/tmp.01deNrXNEC
        label: COS_ACTIVE
        fs: ext2
    passive: null

刪除此不完整的 state.yaml 檔案以解決此問題。(post-draining 將每 10 分鐘重試一次)。

1. 將 state 分割區重新掛載為 RW。

$ mount -o remount,rw /run/initramfs/cos-state

1. 刪除 state.yaml。

$ rm -f /run/initramfs/cos-state/state.yaml

1. 將 state 分割區重新掛載為 RO。

$ mount -o remount,ro /run/initramfs/cos-state

執行上述步驟後,您應該在下次重試時通過 post-draining。

• 相關 issue:
  • [BUG] Upgrade stuck with first node in Post-draining state
  • A potential bug in NewElementalPartitionsFromList which caused upgrade error code 33
• 解決方法:
  • https://github.com/harvester/harvester/issues/4526#issuecomment-1732853216

---

10. 升級卡在 Upgrading System Service 狀態,原因是 fleet-agent 中的 customer provided SSL certificate without IP SAN 錯誤

備註

此已知問題已在 v1.2.1 中修復。

如果升級長時間卡在 Upgrading System Service 狀態,請按照以下步驟調查此問題:

1. 找出與升級相關的 Pod:

   kubectl get pods -A | grep upgrade

   範例輸出:

   # kubectl get pods -A | grep upgrade
   cattle-system               system-upgrade-controller-5685d568ff-tkvxb                 1/1     Running     0              85m
   harvester-system            hvst-upgrade-vq4hl-apply-manifests-65vv8                   1/1     Running     0              87m  // waiting for managedchart to be ready
   ..

2. Pod hvst-upgrade-vq4hl-apply-manifests-65vv8 有以下循環日誌:

   Current version: 102.0.0+up40.1.2, Current state: WaitApplied, Current generation: 23
   Sleep for 5 seconds to retry

3. 檢查所有 bundle 的狀態。請注意,幾個 bundle 是 OutOfSync:

   # kubectl get bundle -A
   NAMESPACE     NAME                                          BUNDLEDEPLOYMENTS-READY   STATUS
   ...
   fleet-local   mcc-local-managed-system-upgrade-controller   1/1
   fleet-local   mcc-rancher-logging                           0/1                       OutOfSync(1) [Cluster fleet-local/local]
   fleet-local   mcc-rancher-logging-crd                       0/1                       OutOfSync(1) [Cluster fleet-local/local]
   fleet-local   mcc-rancher-monitoring                        0/1                       OutOfSync(1) [Cluster fleet-local/local]
   fleet-local   mcc-rancher-monitoring-crd                    0/1                       WaitApplied(1) [Cluster fleet-local/local]

4. Pod fleet-agent-* 有以下錯誤日誌:

   fleet-agent pod log:

   time="2023-09-19T12:18:10Z" level=error msg="Failed to register agent: looking up secret cattle-fleet-local-system/fleet-agent-bootstrap: Post \"https://192.168.122.199/apis/fleet.cattle.io/    v1alpha1/namespaces/fleet-local/clusterregistrations\": tls: failed to verify certificate: x509: cannot validate certificate for 192.168.122.199 because it doesn't contain any IP SANs"

5. 檢查 Harvester 中的 ssl-certificates 設定:

   從命令列:

   # kubectl get settings.harvesterhci.io ssl-certificates
   NAME               VALUE
   ssl-certificates   {"publicCertificate":"-----BEGIN CERTIFICATE-----\nMIIFNDCCAxygAwIBAgIUS7DoHthR/IR30+H/P0pv6HlfOZUwDQYJKoZIhvcNAQEL\nBQAwFjEUMBIGA1UEAwwLZXhhbXBsZS5j...."}

   從 Harvester Web UI:



6. 檢查 server-url 設定,它是 VIP 的值:

    # kubectl get settings.management.cattle.io -n cattle-system server-url
   NAME         VALUE
   server-url   https://192.168.122.199

7. 根本原因:

   使用者在 Harvester 設定中使用 FQDN 設定自簽 ssl-certificates,但 server-url 指向 VIP,fleet-agent Pod 無法註冊。

   例如:為 (*).example.com 建立自簽憑證

   openssl req -x509 -newkey rsa:4096 -sha256 -days 3650 -nodes \
   -keyout example.key -out example.crt -subj "/CN=example.com" \
   -addext "subjectAltName=DNS:example.com,DNS:*.example.com"

   一般輸出為: example.crt, example.key

8. 解決方法:

   將 server-url 更新為 https://harv31.example.com 的值

   # kubectl edit settings.management.cattle.io -n cattle-system server-url
   setting.management.cattle.io/server-url edited
   ...

   # kubectl get settings.management.cattle.io -n cattle-system server-url
   NAME         VALUE
   server-url   https://harv31.example.com

   應用解決方法後,fleet-agent Pod 會被 Rancher 自動替換並成功註冊,升級繼續。

• 相關 issue:
  • [BUG] Upgrade to Harvester 1.2.0 fails in fleet-agent due to customer provided SSL certificate without IP SAN
• 解決方法:
  • https://github.com/harvester/harvester/issues/4519#issuecomment-1727132383

---

11. 升級因 managed chart rancher-monitoring-crd is not ready 而被拒絕

當您開始升級而 Harvester 返回此錯誤訊息:admission webhook "validator.harvesterhci.io" denied the request: managed chart rancher-monitoring-crd is not ready, please wait for it to be ready。請按照此故障排除操作。

---
